Diaphragms for precise control in critical applications
In applications that require precise and rapid pressure responses, our diaphragms offer an engineered sealing solution for high performance valves and actuators.
Why use diaphragms?
Diaphragms provide excellent sealing results in multiple applications. For example: Valves, actuators, pumps, pressure & flow control, pressure switches/sensors, dispensing, metering, ventilation, and media separation applications.
Valves and actuators controlling the flow of liquids or gases frequently utilise diaphragms for fast responses to small pressure changes.
The sensitivity to signal pressure changes will give reliable valve positioning (with very low hysteresis, for example). Additionally, successful sealing in large diameter, high pressure and long stroke applications can all be achieved with the right design.

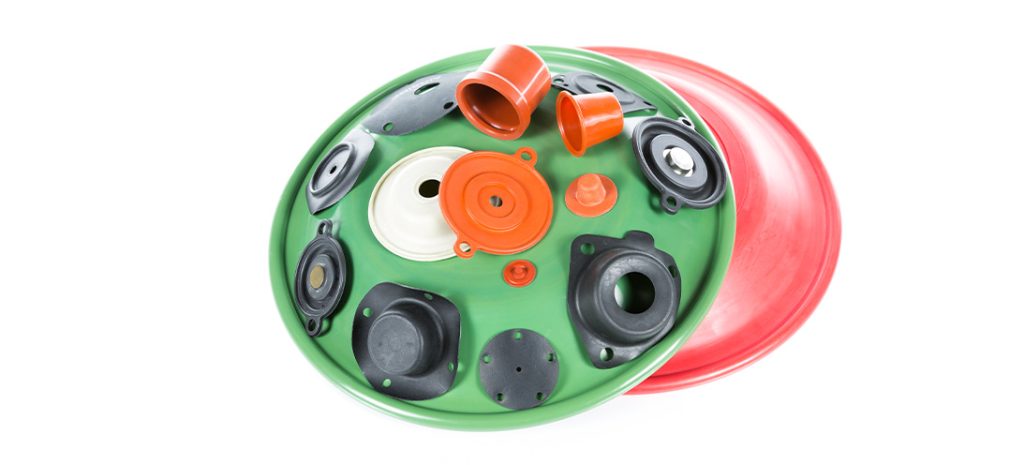

Large diameter & long stroke engineered diaphragms
We supply diaphragms in a wide selection of materials including elastomers, fabric reinforced and thermoplastics. Additionally, our range of diaphragms are an excellent seal of choice for a variety of hydraulic and pneumatic applications.
Are diaphragms suitable for your application?
Our experienced team of application engineers will design your seals and use the latest developments for each individual application. Additionally, we provide a complete seal design service from start to finish.
As well as optimal sealing performance in an application, we will assist with hardware design to provide the most cost-effective sealing package.
We will optimize the tooling in key areas to produce complex geometries. This is achieved by using modelling and specialist FEA technologies to predict the performance of fibre & fabric reinforced materials.
Manufactured in a range of materials with industry specific approvals, our diaphragms are used in applications across many different markets. These industries include oil & gas, process control, potable water management, LPG & natural gas, life sciences and food & beverage.
Learn more about diaphragms on this link HERE
Why use diaphragms?
In valves, actuators, pumps, pressure & flow control, pressure switches/sensors, dispensing, metering, ventilation,and media separation applications – diaphragms can provide excellent sealing results.
Valves and actuators controlling the flow of liquids or gases frequently utilise diaphragms for fast responses to small pressure changes with excellent hysteresis performance.
The sensitivity to signal pressure changes gives reliable valve positioning (with very low hysteresis) and successful sealing in large diameter, high pressure and long stroke applications can all be achieved with the right design.

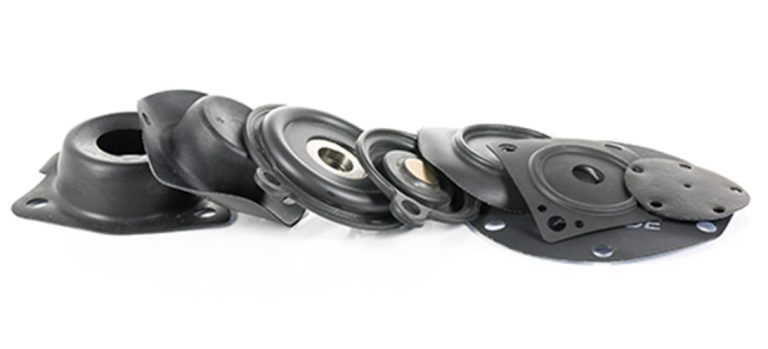

Large diameter & long stroke engineered diaphragms
With a wide selection of materials (including elastomers, fabric reinforced and thermoplastics) our range of diaphragms are an excellent seal of choice for a variety of hydraulic and pneumatic applications.
With varied manufacturing options, we produce diaphragms up to 46” diameter, and our specialist profiles include convoluted, dished and “top hat” designs in both single acting and double acting formats.
Are diaphragms suitable for your application?
Our team of application engineers have years of seal design experience and use the latest developments in technology to assess each individual application and provide a complete seal design service from start to finish.
As well as optimal sealing performance in an application, we can assist with hardware design to provide the most cost-effective sealing package for our customers. Using modelling and specialist FEA technologies to predict the performance of fibre & fabric reinforced materials allows us to optimise the tooling in key areas to produce complex geometries.
